Single Winder HD/LDPE Blown Film Machine for Agricultural Film Production

Overview
Recommended Products

Product Overview

Mono layer film blowing machine

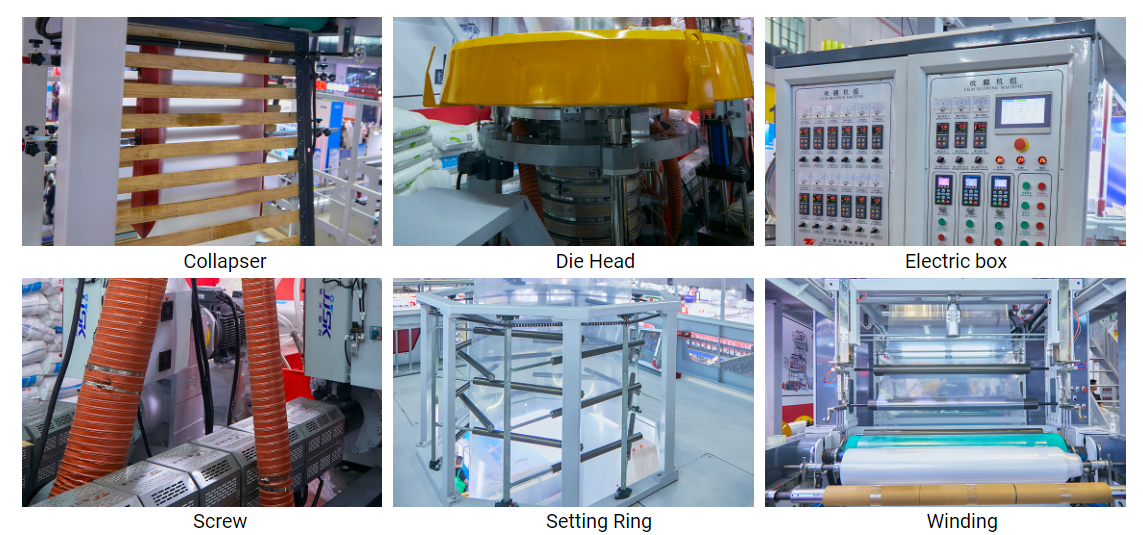

CHENQI's mono layer film blowing machine is suitable for producing plastic films such as high-density polyethylene (HDPE), low-density polyethylene (LDPE), and linear low-density ethylene (LLDPE). Widely used in the plastic packaging industry, such as garbage bags, shopping bags, and agricultural cover films. The barrel and screw of the extruder are made of high-quality composite steel through nitriding and precision machining, with the best hardness and corrosion resistance. The auxiliary equipment is equipped with a flat workbench, making operation more convenient.

Specifications and Parameters

Model		MONO-45	MONO-50	MONO-55	MONO-60	MONO-65
Suitable material		HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE
Film width		100-500mm	300-600mm	400-800mm	500-1000mm	600-1200mm
Flim thickness	HD	0.009-0.10mm	0.009-0.10mm	0.009-0.15mm	0.009-0.15mm	0.009-0.15mm
Flim thickness	LD	0.02-0.15mm	0.02-0.15mm	0.03-0.15mm	0.03-0.15mm	0.03-0.15mm
Max. Extrusion output	HD	40kg/hr	45kg/hr	55kg/hr	60kg/hr	70kg/hr
Max. Extrusion output	LD	50kg/hr	55kg/hr	65kg/hr	75kg/hr	100kg/hr
Screw diameter		φ45	φ50	φ55	φ60	φ65
Screw l/d length		32：1	32：1	32：1	32：1	32：1
Die size	HD	φ60	φ80	φ80	φ100	φ100
Die size	LD	φ100	φ120	φ180	φ200	φ220
Air blower		1.5kw	2.2kw	3kw	4kw	4kw
Roller width		600mm	700mm	900mm	1100mm	1300mm
Take-up motor		0.75kw	1.1kw	1.5kw	1.5kw	2.2kw
Winding motor		6N.m	10N.m	10N.m	16N.m	16N.m
Outline dimension(L×W×H)		3.8×2.0×4.1m	5.0×2.2×4.5m	5.5×2.5×5.2m	5.8×2.8×6.3m	5.8×2.8×6.3m

Product Features

Easy to operate: The structure is relatively simple, easy to use and maintain
Multi functional material processing: capable of processing various plastic polymers, including LDPE, LLDPE, HDPE
High flexibility: the thickness and width of the film can be adjusted according to production needs
Durable and reliable: made of high-quality composite steel and advanced production technology
Wide application range: suitable for producing plastic film products, such as garbage bags, shopping bags, etc.

Frequently Asked Questions (FAQ)

Q1： How is the after-sales service? How long does the machine warranty last?
A1： Once you purchase our machine, we guarantee to provide comprehensive lifelong after-sales service, including repair, technical support, training, and consultation. Our after-sales team will provide you with thoughtful service and help you solve any problems or difficulties encountered in using machine company products. All machines we sell come with a 12-month warranty.

Q2： What technical support does your company provide?
A2： We provide multiple technical support channels, including phone, online chat, and expatriate personnel. You can find all the information about technical support on our website. We are committed to providing our customers with the best support services and ensuring that all questions receive timely and professional responses.

Q3： How to purchase products from your company?
A3： You can purchase our products through our company's official website or search for our authorized agents in the market. If you encounter any problems during the purchasing process, our team will be available to provide assistance and support at any time.

Q4： Do you need an agent in your factory?
A4： We need to hire agents, please feel free to inquire for more details.

Q5： What is your delivery time?
A5： Usually delivered within 30 days. But it depends on the order and machine model.

Q6： How long can your machine work continuously?
A6： Our machines can work 24 hours a day without interruption, which not only increases production but also saves energy.

Contact Us

If you have a need for producing shopping bags, garbage bags, and roll up bags, you can contact us for free consultation and quotation. Our professional sales team is always ready to assist you and provide you with a comprehensive solution for plastic bag production.
